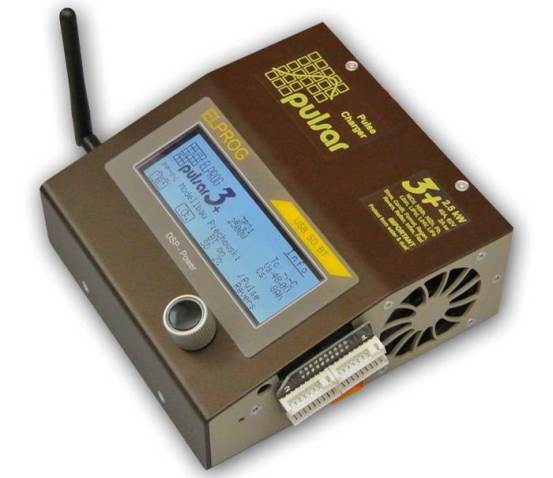

Pulsar 3+
- Charging current (automatically adjustable) 0,1 - 8,0 & 8,0 - 40,0A
- Charging power: 500W / 12V; 1,0kW / 24V; 1,6kW / 36V; 2,5kW / 48V
- Built-in balancer up to 16 cells of power 60W and balancing currents 0,5; 1,0 or 2,0A
Technical specification:
- Battery capacity limiter 0,1 - 99Ah
- Discharging power: in heat 100W; with the return of energy (Rewers) - such as charging
- Charging voltage: 0,6 - 64V, 1-32 NiCd/NiMH; 1-18 Pb; 1-14 LiIo/LiPo; 1-16 LiFe; 1-12 LiHV; 1-16 LTO
- Supply voltage: 12V (10-16V), 24V (20-32V) or 48V (40-60V)
- Power limiter for using with a low power power supplies
- Separate setup parameters for usage with car battery and power supply
- Programs for chargind, dischaging, storage, condit, test, format & regeneration cells
- Program memory (user settings): 20
- Cycles (up to 99): charge/discharge; discharge/charge (current can be set up different between charge and discharge)
- Permanent measurement of resistance (Ri) while charging (only impulse mode)
- Intelligent balancing algorithm, current - automatically variable individually in 10 steps per cell
- Charging finish identification:
Nixx - Delta-peak (adjustable from 1 to 25 mV in steps of 0,5 mV); Inflex; charging time; adjusted capacity
Pb, Lixx – CC/CV finish voltage of charging adjustable; Fastmod; charging time; adjusted capacity - Reflex function - (memory effect protection for NiCd & NiMH), lowers voltage drift at LiXX,
- Pulse – Impulse, Reflex, adjusted for usage with power supply (Impulse mode off)
- Process memory (last processes data): 20
- SD card included; process logging on SD card (archive and analysis on PC possible)
- Real-time clock
- Prepared for two-way communication with PDA and mobile phones using BT (class 1)
- USB connection (cable included)
- PC Software PulsarGraph (Windows)
- Free upgrades over internet
- Internal cooling fan with smooth adjusting (very quiet - only one fan)
- External temperature sensor
- Digital, synchronous converter - controlled by DSP
- Large graphic display - 240x64 points with adjustable backlighting
- Acoustic alarm (disengageable)
- Protection against reverse polarity voltage to the input and output
- Protection against overheating
- Protection against overload (Reverse) and discharge the battery power
- Lightning arrester for battery connecting
- More...
Pulsar 3+

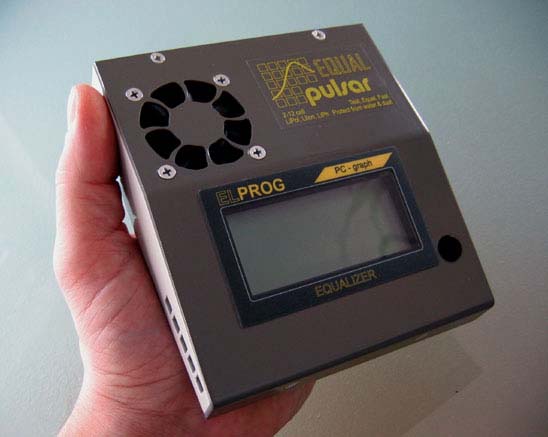

Pulsar - EQUAL balancer
- User’s manual Pulsar-EQUAL v1.09
- Program PC Graph for Pulsar-EQUAL do
- Upgrade Pulsar-EQUAL 1V09
- Test Pulsar-EQUAL from Modell AVIATOR 5/2008 DE
Pulsar - EQmini balanser

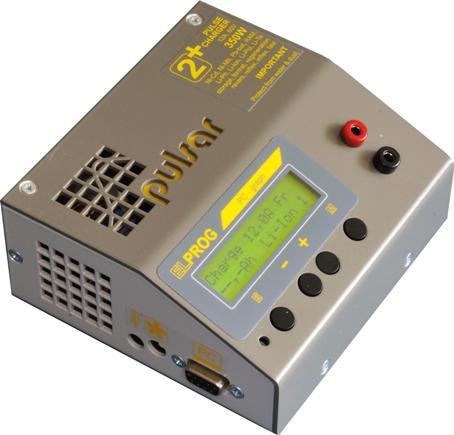

Pulsar 2+ (350W)
 |
|||

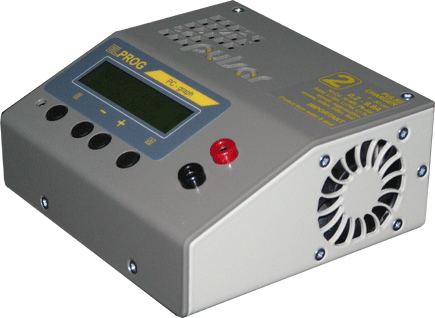

PULSAR 2 rapid chargers
Cent for Future (2005) & Golden Euro (2006) for Pulsar 2 - "Product with a Future"
